PKS

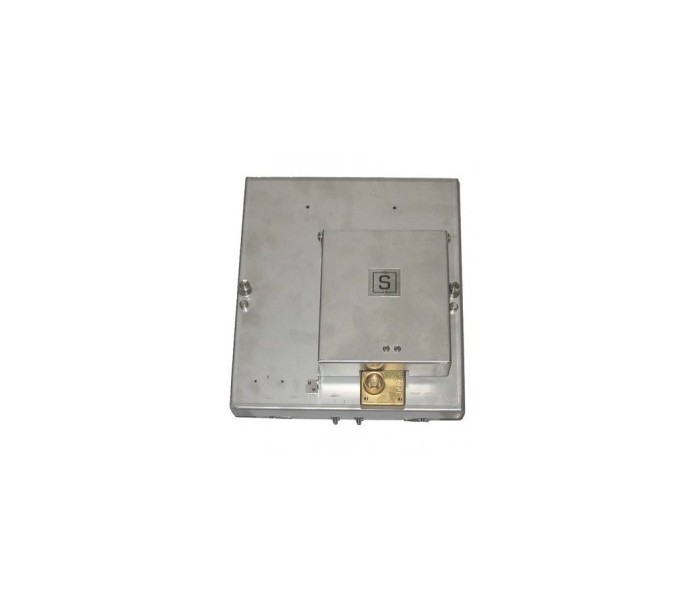

S-KEY OPERATED SWITCH UNIT
GENERAL CHARACTERISTICS :
- Lock type "S“ with 1 to 3 key entries ref: 1E, 2E, 3E
- Contacts 2NO1NC on operating key position
- Protective cover per key, lock with square operating spindle ref SQ,
with padlock device ref PL
- Pre-wired terminal block
- ProtectionIP65
- Operating temperature: -25 ° C to +70 ° C
- Box with 2 cable entries and terminal block 12 positions,
housing cover with sealing device
ELECTRICAL CHARACTERISTICS :
Ith 10 A
MATERIAL :
- Enclosure Stainless Steel 316L
- Lock: bronze
EQUIVALENT SNCF ARTICLE CODES :
- Symbol(1 Keyentry): 7.944.0312
- Symbol(2 Keyentries): 7.944.0314
- Symbol(3 Keyentries): 7.944.0316
