BPC

GENERAL CHARACTERISTICS :

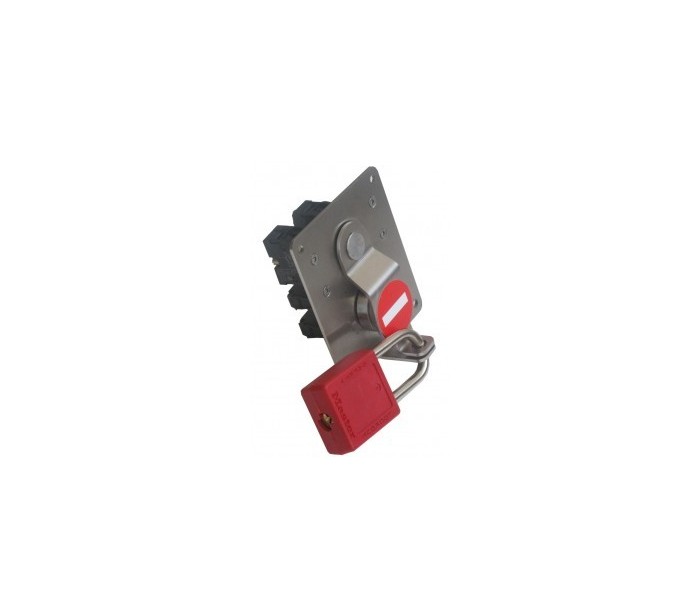

- Safety padlocking device for push button diameter 22, with or

  without  LED, in standard version lock control with 1NO contact

  ref: 1O

- Push button contact 1NO ref: 1O, padlock shackle diameter

  8mm maximum.

- Color standard: PB without LED : black ref: BK,  PB with LED

  white ref: VWE

ELECTRICAL CHARACTERISTICS :

- LED power supply : 24V ref:2 4V, 110 volts AC ref: 110V

- 240VAC ref: 240V

- Lock contact, Ith: 10A  AC15-240V:  3A, DC13-240V/:0.27A

- PB contact : DC13-24V: 0.5A, AC15-24V=4A, AC15-240V: 1A

- Operating temperature: - 20° C to 70°C

OPTIONS :

- PB without LED: red: RD, blue: BL, green: GR, yellow: YE

- PB with LED : red : VRD , blue: VBE, green: VGN , yellow: VYW

- Lock contact : without ref: SC, 1NO1NC ref: 1O1F, 2NO ref: 2O

- PB contact : 1NO1NC ref: 1O1F, 2NO ref: 2O
