SWL-2E

CHARACTERISTICS:

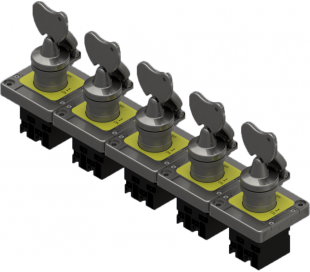

Key operated power isolation or circuit control switch lock Standard sequence: key release when power "OFF" Panel mounting (BOB), at option choice wall-mounted (FOB) -1 to 5 locks (keys).

Multiple lock ref : 2E, 3E, 4E, 5E

Ambient temperature -20°C to +80°C

MATERIALS:
Stainless Steel 316L

ELECTRICAL FEATURES:

Contacts 2NC+2NO AC21 16A, AC23
4kW/230V,7.5/400V, AC3 3kW/ 230V,4 kW/ 400V

OPTIONS:

- 1 switch per lock ref : X (between number of locks and switch contacts ordering reference)

- Contacts : 3NC+1NO (trapped key) ref : 3O1F

- Contacts : 4NC (trapped key) ref : 4O

- Lock dustcover ref : CE

- In enclosure IP55 polycarbonate ref : IP55 (only for 1 key)

- In enclosure IP55 Stainless Steel 304L ref : IP55M (Dustcover included)

- Padlocking device , 2x8,2 mm holes ref : HC2

- Knob to replace key 1 ref : COM

OPERATING PRINCIPLE:

Turn key 1 to operate the switch, released key in position 0 only
